KOMADA Hand Pallet Truck
KOMADA Low Profile Hand Pallet Truck
KOMADA Low Profile Hand Pallet Truck
In dealing with pallet handling issue, KOMADA Low Profile Hand Pallet Truck is used to help user in moving pallet from one to another area within the warehouse. Knowing that there are no identical users' needs or their warehouse structure, KOMADA Low Profile Hand Pallet Truck that come with different sizes and loading capacity could serve as alternative towards pallet handling within the warehouse. Besides, 1 very specific feature is that the initial fork height/minimum fork height will be slightly lower than the common pallet truck in order to cater user that utilize lower size pallet.

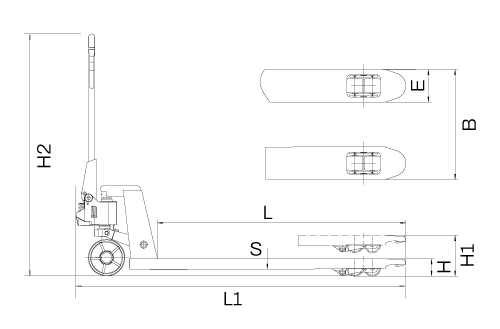

Specifications :
Product Code | RZ 20LPN | RZ20LP | |||
Loading Capacity | kg | 2000 | |||
Min Fork Height (H) | mm | 52 | |||
Max. Fork Height (H1) | mm | 140 / 160 | |||
Max. lifting height | mm | 88 / 95 | ≥110 | ||
Fork outside width (B) | mm | 540 | 685 | ||
Fork Inside width | mm | 200 | |||
Fork Length (L) | mm | 1150 | 1220 | ||
Single Fork size (E) x (S) | mm | 160 x 37 | 160 x 50 | ||
Overall Length (L1) | mm | 1315-1620 | |||
Overall width | mm | 520 | |||
Overall height (H2) | mm | 1225 | 1245 | ||
Single Loading Wheel | mm | Ø50 x 93 | |||
Steering Wheel | mm | Ø160 x 50 | Ø180 x 50 | ||
Material of wheel | PU | ||||
Size | mm | H50 X W540 X L1150 | H50 x W685 X L1220 |
*Product colours depends on stock : Red / Yellow
