KOMTEC Heavy Duty Top Plate Castor C/W Red PVC Wheel (Double Ball Bearing)

Company Overview

TTF Marketing Holdings Sdn. Bhd. (407754-H) is a leading Racking Systems & Office Systems pioneer in Malaysia. In order to achieve a world-class standard of quality, we heavily invest in modern types of machinery and the latest sophisticated technology. We provide a full range of products such as Light Duty Racking Systems, Medium Duty Racking Systems, Heavy Duty Racking Systems, Steel Platforms, Mezzanine Floors, Selective Pallet Racking, Gondola Shelving, and Office Systems applicable to all market segments.

Quality Assurance

TTF Marketing Holdings Sdn. Bhd. (407754-H) stresses on using Computer-Aided-Design (CAD) and Computer-Aided-Engineering (CAE) software for design and modelling capacity to ensure accuracy and quality for our clients and customers.TTF also incorporates the Finite Element Analysis (FEA) to determine the factor of safety and deflection of the structure.

Awards

As an endorsement of our product quality and the desire to achieve ISO9001:2000 status, we annually subject our products to a stringent SIRIM QAS compression test. All our racking shelves were subjected to extreme load tests and the highest SIRIM approval ratings. We are proud to say that our products are next to none in the competitive industry of racking systems.

KOMTEC Castor Wheel

KOMTEC Heavy Duty Top Plate Castor C/W Red PVC Wheel (Double Ball Bearing)

KOMTEC Heavy Duty Low Gravity Castor C/W Black PP Wheel (Double Ball Bearing)

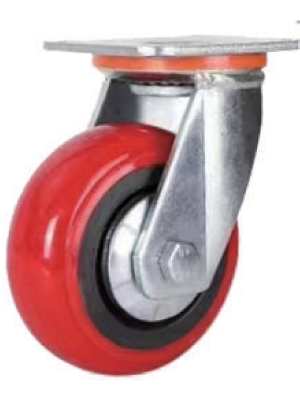

Product Code	5311-RPV-100	5311-RPV-125	5311-RPV-150	5311-RPV-200
Wheel Configuration	SWIVEL
Wheel Overall Dia. x Width (mm)	100 x 50	125 x 50	150 x 50	200 x 50
Wheel Internal Dia. x Hub Length (mm)	12.5 x 61
Overall Height (mm)	142	164	190	240
Plate Size (mm)	115 x 100
Hole Spacing (mm)	85 x 72
Loading Weight (kg)	200	230	280	300
Wheel Material	PVC

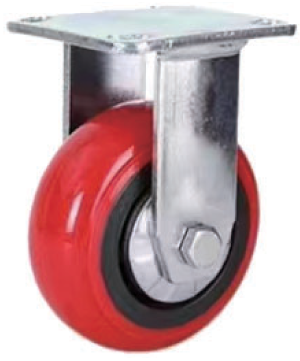

Product Code	5312-RPV-100	5312-RPV-125	5312-RPV-150	5312-RPV-200
Wheel Configuration	FIXED
Wheel Overall Dia. x Width (mm)	100 x 50	125 x 50	150 x 50	200 x 50
Wheel Internal Dia. x Hub Length (mm)	12.5 x 61
Overall Height (mm)	142	164	190	240
Plate Size (mm)	115 x 100
Hole Spacing (mm)	85 x 72
Loading Weight (kg)	200	230	280	300
Wheel Material	PVC

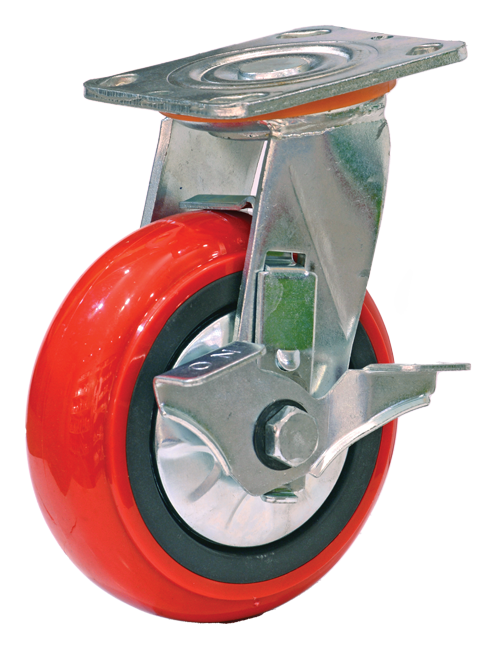

Product Code	5313-RPV-100	5313-RPV-125	5313-RPV-150	5313-RPV-200
Wheel Configuration	SIDE BRAKE
Wheel Overall Dia. x Width (mm)	100 x 50	125 x 50	150 x 50	200 x 50
Wheel Internal Depth x Hub Length (mm)	12.5 x 61
Overall Height (mm)	142	164	190	240
Plate Size (mm)	115 x 100
Hole Spacing (mm)	85 x 72
Loading Weight (kg)	200	230	280	300
Wheel Material	PVC

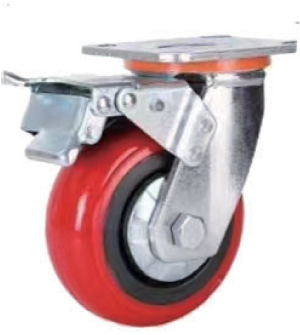

Product Code	5314-RPV-100	5314-RPV-125	5314-RPV-150	5314-RPV-200
Wheel Configuration	TOP BRAKE
Wheel Overall Dia. x Width (mm)	100 x 50	125 x 50	150 x 50	200 x 50
Wheel Internal Dia. x Hub Length (mm)	12.5 x 61
Overall Height (mm)	142	164	190	240
Plate Size (mm)	115 x 100
Hole Spacing (mm)	85 x 72
Loading Weight (kg)	200	230	280	300
Wheel Material	PVC

Product Code	RPV-100	RPV-125	RPV-150	RPV-200
Wheel Configuration	WHEEL
Wheel Overall Dia. x Width (mm)	100 x 50	125 x 50	150 x 50	200 x 50
Wheel Internal Dia. x Hub Length (mm)	12.5 x 61
Overall Height (mm)	142	164	190	240
Plate Size (mm)	115 x 100
Hole Spacing (mm)	85 x 72
Loading Weight (kg)	200	230	280	300
Wheel Material	PVC
