KOMADA Manual Platform Stacker

Company Overview

TTF Marketing Holdings Sdn. Bhd. (407754-H) is a leading Racking Systems & Office Systems pioneer in Malaysia. In order to achieve a world-class standard of quality, we heavily invest in modern types of machinery and the latest sophisticated technology. We provide a full range of products such as Light Duty Racking Systems, Medium Duty Racking Systems, Heavy Duty Racking Systems, Steel Platforms, Mezzanine Floors, Selective Pallet Racking, Gondola Shelving, and Office Systems applicable to all market segments.

Quality Assurance

TTF Marketing Holdings Sdn. Bhd. (407754-H) stresses on using Computer-Aided-Design (CAD) and Computer-Aided-Engineering (CAE) software for design and modelling capacity to ensure accuracy and quality for our clients and customers.TTF also incorporates the Finite Element Analysis (FEA) to determine the factor of safety and deflection of the structure.

Awards

As an endorsement of our product quality and the desire to achieve ISO9001:2000 status, we annually subject our products to a stringent SIRIM QAS compression test. All our racking shelves were subjected to extreme load tests and the highest SIRIM approval ratings. We are proud to say that our products are next to none in the competitive industry of racking systems.

KOMADA Stacker

KOMADA Manual Platform Stacker

KOMADA Fully Powered Double Lifting Stacker

KOMADA EST Fully Powered Stacker

KOMADA Economic Pro Powered Stacker

KOMADA Fully Powered Stacker

KOMADA Self Lifting Stacker

KOMADA Hydraulic Manual Stacker

KOMADA Manual Platform Stacker

Specifications :

Product code		PS 0415
Capacity	kg	400
Load Center	mm	350
Type of lifting	mm	Foot
Operating Type	mm	Walkie
Material of wheel	mm	PU
Bearing Wheel	mm	Ø75 x 42
Steering Wheel	mm	Ø150 x 38
Min./Max. Fork height (H1)/(H2)	mm	90/1500
Fork inside/outside width	mm	550/310
Single fork size ( e x W x L1)	mm	60 x 120 x 815
Overall size (Hx W x L)	mm	1770 x 610 x 1000
Min. turning radius	mm	1022
Fork lifting height to maximum pump pressure times	mm/s	≤48
Lowering speed		Foot control

*Product colours depends on stock: Red / Yellow

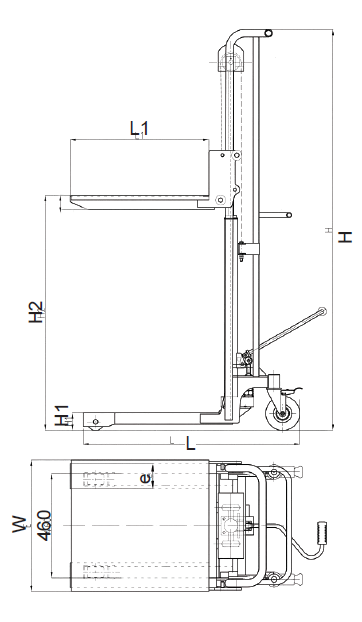

The drawing of Manual Platform Stacker (PS0415) :

KOMADA Manual Platform Stacker -PS0415

In regards to material handling, KOMADA Manual Platform Stacker is the fully manual platform stacker to handle materials/products that are unorganized or packed without pallets. With its platform structure, makes it easier for user in doing their task.
