KOMADA Hand Pallet Truck
KOMADA 2 ton Electric Hand Pallet Truck Pedal
KOMADA 2 ton Electric Hand Pallet Truck Pedal
KOMADA F4 201 - 2 Ton Electric Hand Pallet Truck Pedal brings maximum flexibility in configurations for every application. The standard single 24V/20Ah battery setting comes with a portable storage container to keep everything easily accessible on the go. Its versatilty makes F4 201 an all rounder, perfect for diverse tasks in the most cost effective way.
Why you should invest one electric pallet truck in your warehouse?
• 100% efficiency : Shorter time to complete your job compared to manual pallet truck
• Configuration with an additional battery : Two batteries of total 40 AH battery capacity, allow it to operate for 5-6 hours long in a day!
• Avoid staff from having back pain issue while doing long term carrying stocks
• Electric Control, easy to operate
• Able to load 2.0 ton stocks in one time
• Minimize manpower - only one person needed!
• 100% efficiency : Shorter time to complete your job
#Electric Pallet Truck #warehouse material handling equipment

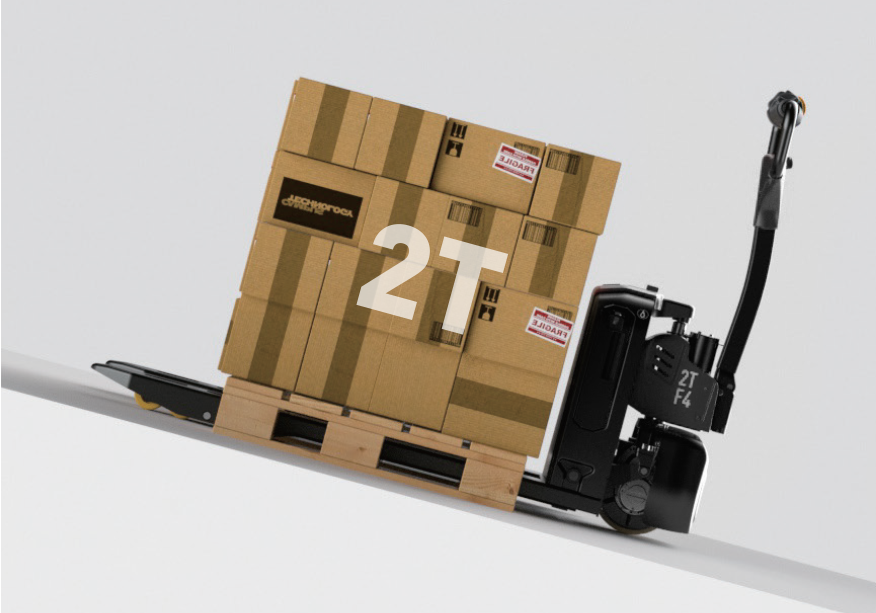

Power and capacity upgrade for productivity boost
The powerful 48V electric system means the F4 achieve a load capacity up to 2 tons,
which brings a productivity boost allowing you to lift more and move more.

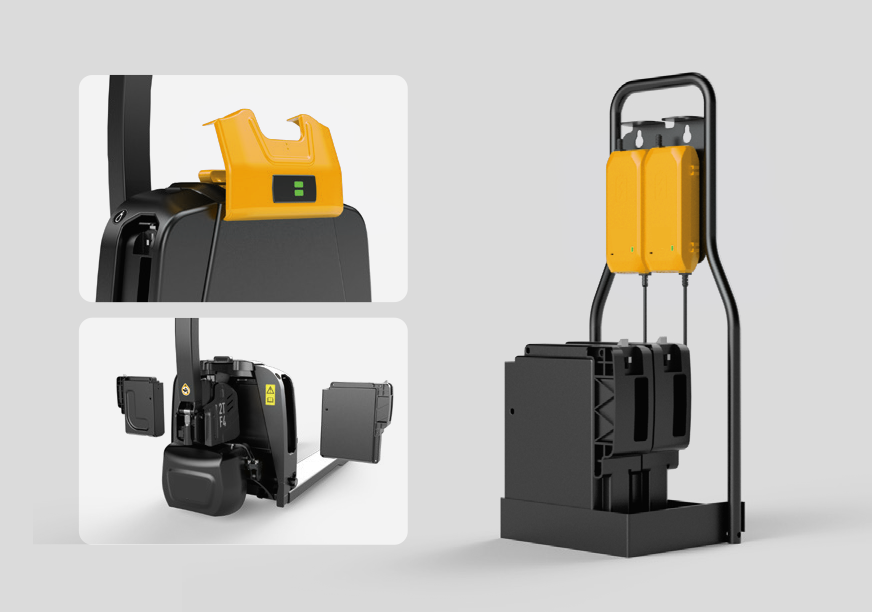

Plug in&out Li-ion batteries maximize flexibility
F4 comes with two 24V/20Ah Li-ion batteries which can be easily replaced via plug in&out.
This truck can operate more frequently thanks to fast charging and zero maintenance.
Plus, its flip cover design protects batteries from water ingress, ensuring battery safety.

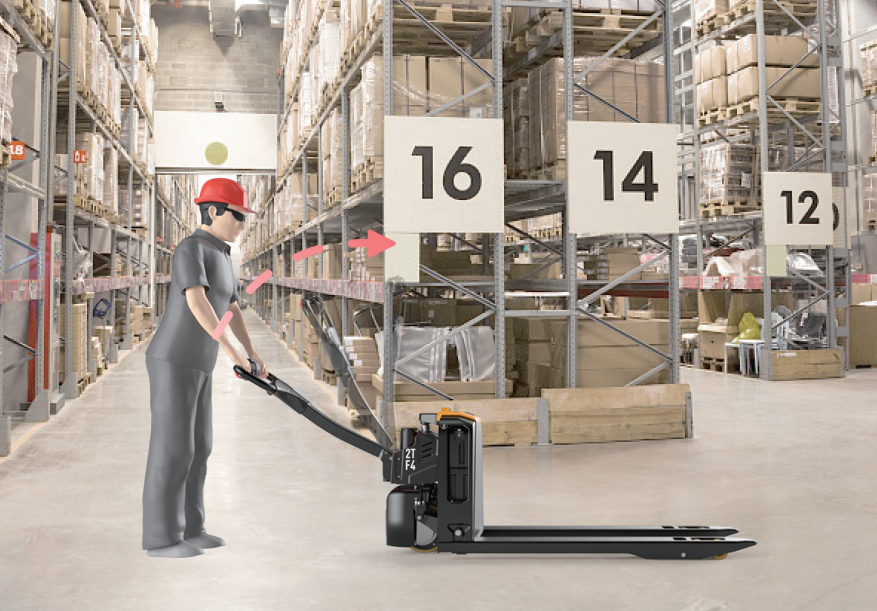

Newly designed tiller head combining both aesthetics and practicality
F4 adopts EP’s newly designed tiller head, and it demonstrates clean and smooth lines.
The square tube is strong and ensures robustness and reliability for daily operation.

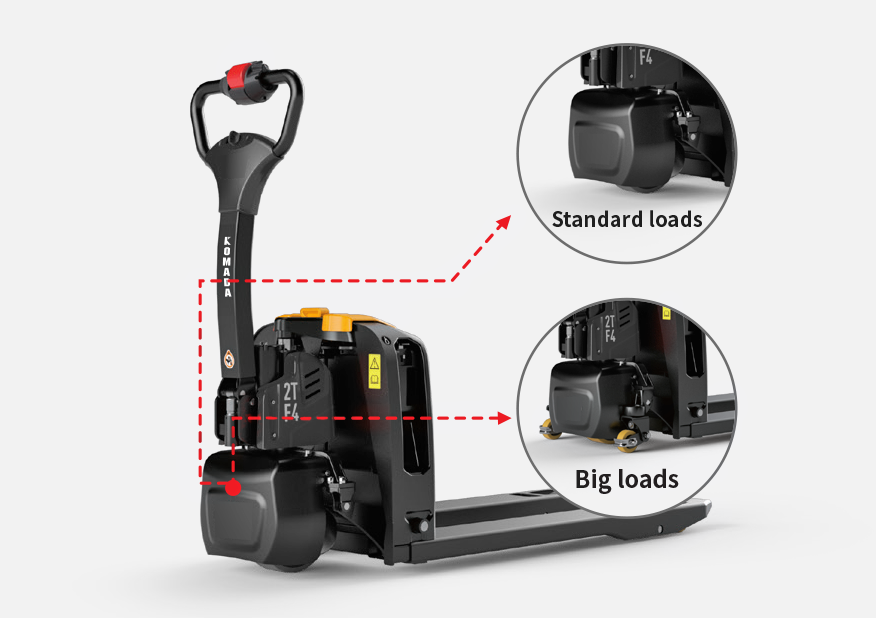

Stabilizing wheel option to handle all kind of loads
The stabilizing wheels allow to handle big loads while reducing the risk of falls and damages on uneven floors.
Such options can be offered directly from the factory or as retrofit.
Specifications :
| Product code | F4 201 | |
| Drive | Electric | |
| Operator type | Pedestrian | |
| Load capacity | kg | 2000 |
| Load center distance (Q) | mm | 600 |
| Load distance, centre of frive axle to fork (c) | mm | 950 |
| Wheelbase (y) | mm | 1180 |
| Service weight | ||
| Service weight | kg | 140 |
| Axle loading, laden front / rear | kg | 620 / 1520 |
| Axle loading, unladen front / rear | kg | 100 / 40 |
| Tyres / chassis | ||
| Tyre type | Polyurethane | |
| Tyre size, front | 210mm x 70mm | |
| Tyre size, rear | 80mm x 60mm | |
| Additional wheels (castor wheels) | mm | 74mm x 30mm |
| Wheels, number front / rear (x=drive wheels) | mm | 1x, -/4 |
| Tread width, front (b10) | mm | - |
| Tread width, front (b11) | mm | 410 (535) |
| Dimensions | ||
| Lift height (h3) | mm | 105 |
| Height of tiller handle in drive position min. / max. (h14) | mm | 750 / 1190 |
| Lowered height (h13) | mm | 85 |
| Overall length (L1) | mm | 1550 |
| Length to face of forks (l2) | mm | 400 |
| Overall width (b1 / b2) | mm | 590 (695) |
| Fork dimensions (s x e x l) | mm | 50 x 150 x 1150 |
| Distance between fork-arms (b5) | mm | 560 (685) |
| Ground clearance, center of wheelbase (m2) | mm | 30 |
| Asile width for pallets 1000 x 1200 crossways (Ast) | mm | 2160 |
| Asile width for pallets 800 x 1200 crossways (Ast) | mm | 2025 |
| Turning radius (Wa) | mm | 1360 |
| Performance data | ||
| Travel speed, laden / unladen | km/h | 4.5 / 5 |
| Lifting speed, laden / unladen | m/s | 0.016 / 0.020 |
| Lowering speed, laden / unladen | m/s | 0.058 / 0.046 |
| Max. gradeability, laden / unladen | % | 8 / 16 |
| Service brake | Electromagnetic | |
| Electric-engine | ||
| Drive motor rating S2 60 min | kW | 0.9 |
| Lift motor rating at S3 15% | kW | 0.7 |
| Battery voltage / nominal capacity | V/Ah | 48 / 20 |
| Battery weight | kg | 10 |
| Energy consumption according to DIN EN 16796 | kWh/h | 0.18 |
| Turnover output according to VDI 2198 | t/h | 88 |
| Turnover efficiency according to VDI 2198 | t/kWh | 473.12 |
| Drive / lift mechanism | ||
| Type of drive control | BLDC | |
| Steering design | Mechanical | |
| Sound pressure level at the driver's ear | dB(A) | 74 |
|
Charger output current |
A | - |
|
