KOMADA Fully Powered Double Lifting Stacker

Watch Video Here

This Fully Powered Double Lifting Stacker is designed to used for cargo handling and stacking, uses electricity as a power source.

Extra Service :
We offer a 6-months warranty for the battery and 12 months warranty for the hydraulic pump

Special Features:

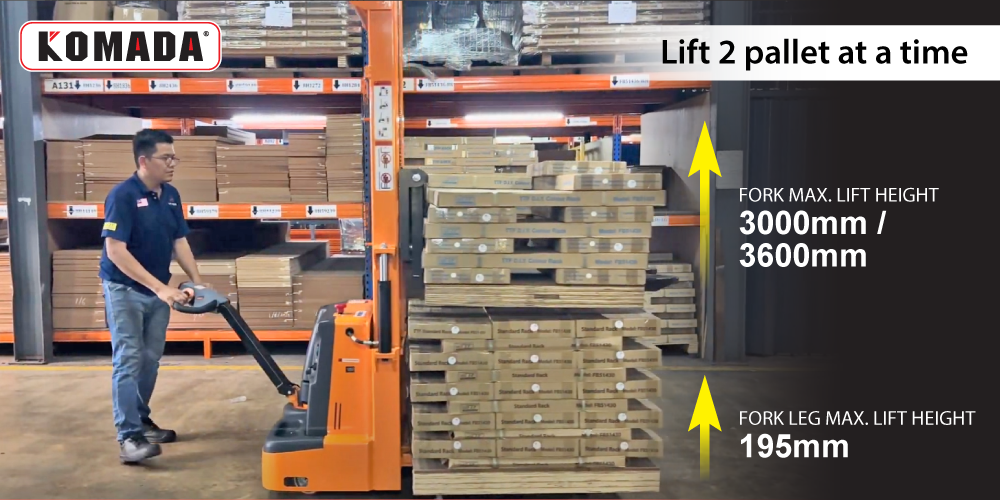

Can lift and transport two different pallets up to 1,500 KG at a time

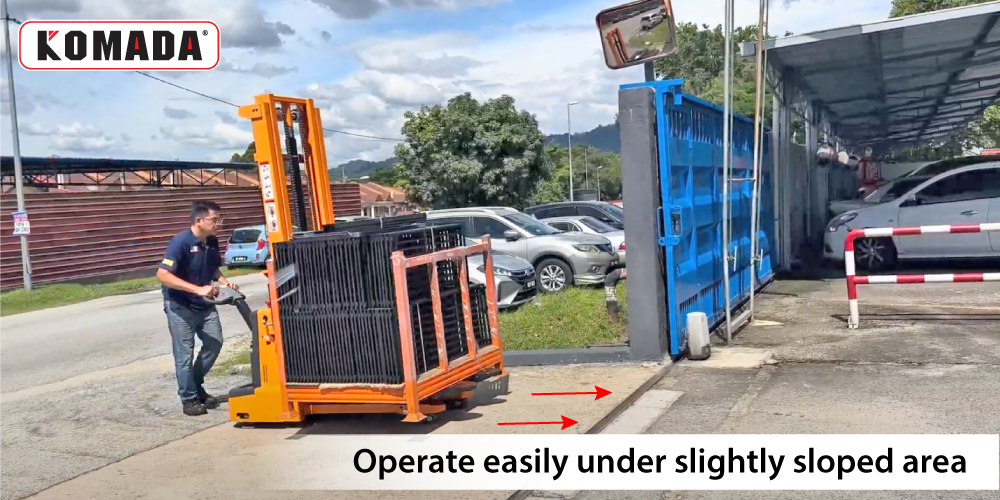

Able to lift the lower fork, allowing it to navigate at uneven and sloped roads with ease

#Electric Stacker #Double Lifting Electric Stacker

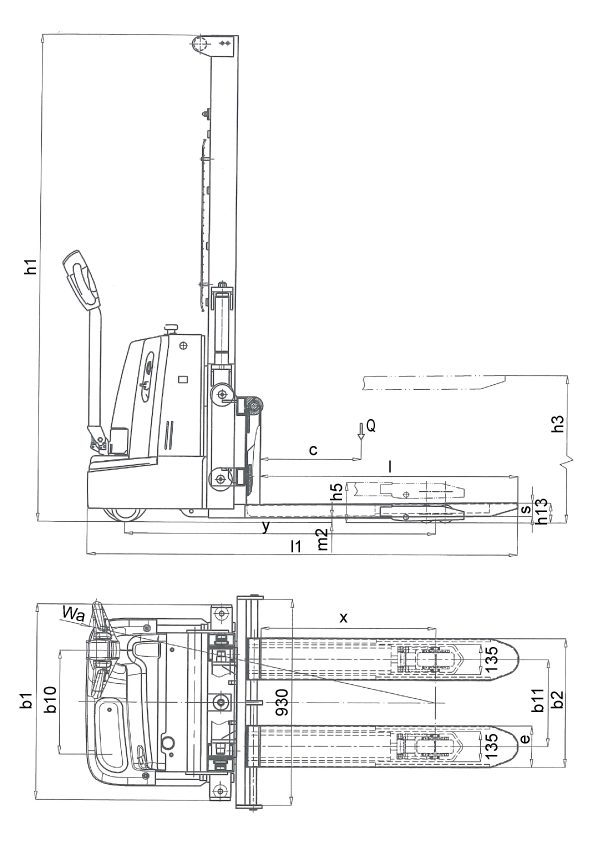

Specifications :

Product Code		CDDYG-KS 1530	CDDYG-KS 1536

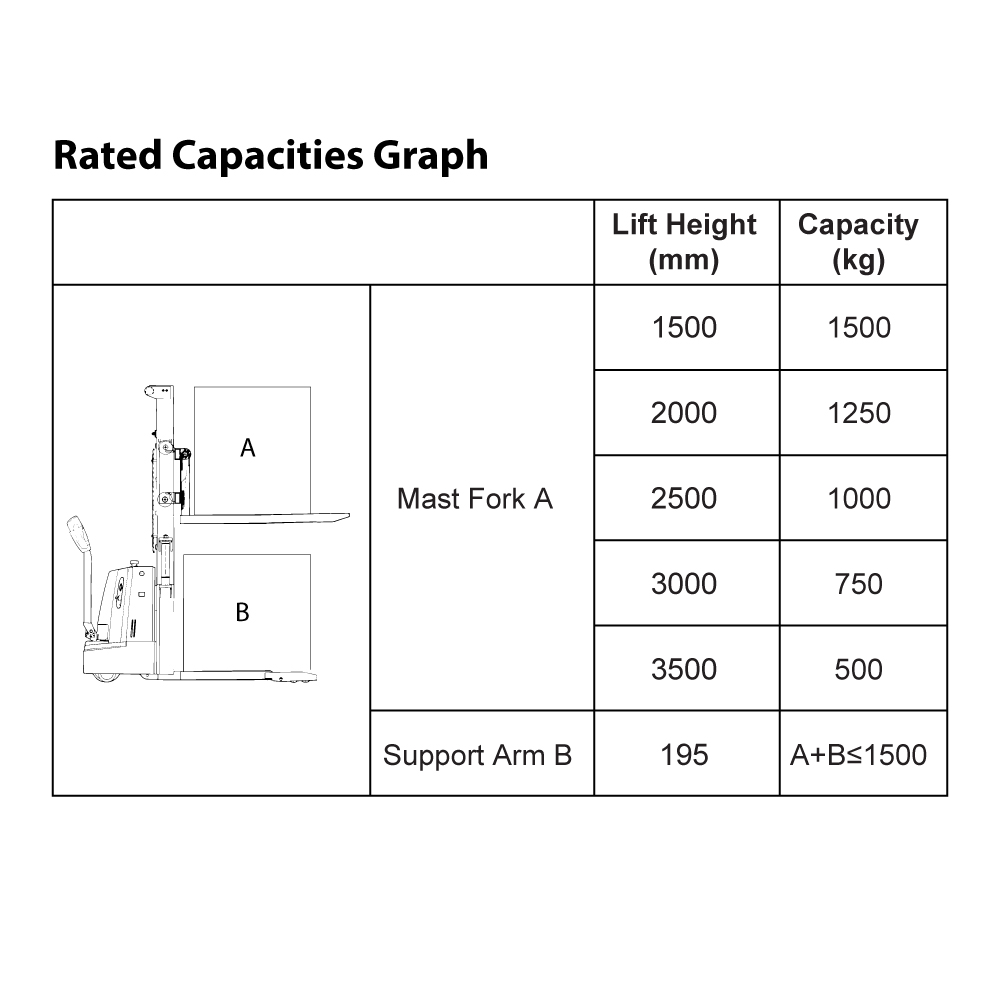

Rated Capacity (Q)	kg	1500
Load Center Distance (C)	mm	450
Load Distance, centre of drive axle to fork (x)	mm	780
Wheel Base (y)	mm	1385
Service weight (include battery)	kg	740
Tyre type driving wheels / loading wheels		PU / PU
Tyre size, driving wheels (diameter x width)	mm	Ø210 x 75
Tyre size, loading wheels (diameter x width)	mm	Ø80 x 60
Tyre size, caster wheels (diameter x width)	mm	Ø150 x 50
Wheels, number driving, caster / loading (x=drive wheels)	mm	1x +1/4
Track width , front, driving side (b11)	mm	390
Track width , rear, driving side (b10)	mm	465
Overall length (l1)	mm	1920
Overall width (b1)	mm	980
Height, mast lowered (h1)	mm	2180	2480
Ground clearance, center of wheelbase (m2)	mm	20
Lowered height (h13)	mm	90
Lift height (h3)	mm	3000	3600
Initial lift (h5)	mm	195
Fork dimension (s/ e/ l)	mm	60 x 185 x 1150
Outside width of the forks (b2)	mm	575	925
Turning radius	mm	1580
Lifting speed, laden / unladen	mm /s	86 / 52
Lowering speed, laden / unladen	mm / s	76 / 68
Travel speed, laden / unladen	km / h	5 / 4
Max. gradeability, laden / unladen	%	12 / 8
Battery voltage	V/Ah	24 / 120
Drive motor rating	V/Kw	24 / 1.0
Lift motor rating	V/Kw	24 / 2.2
Type of drive unit		AC
