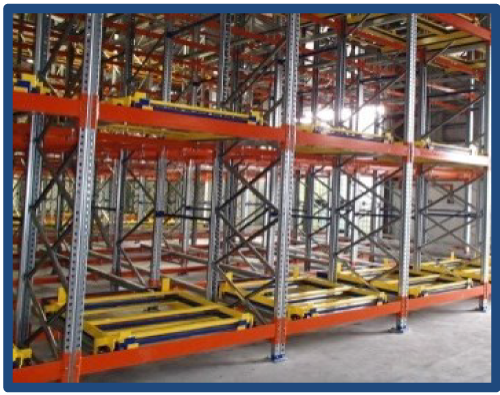

Warehouse Racking System

Cart Push Back

Cart Push Back

Cart Push Back


Cart Push Back - 2 pallets deep

Criteria

 Euro Pallet DIN / EN 15146 1200mm x 800mm Industrial Pallet (EUR3) DIN 15146 1200mm x 1000mm UK Chep Pallet B1210A 1200 x 1000mm US Pallet GMA 1020mm x 1220mm Comment
Direction of transport: (in depth) 800mm 1000mm

1: 1000mm

2: 1200mm

 1220mm
System depth min. in mm.: (overall depth of rack) 1700mm 2100mm

1: 2100mm

2: 2500mm

 2540mm Rails = depth of pallet x 2 + 100mm
System width max. in mm.: 1160mm 1160mm

1: 1160mm

2: 960mm

 1180mm Widest trolley = Pallet width - 40mm

System height in mm.:

1: end stop

2: first cart

1: 154mm

2: 138mm

1: 154mm

2: 138mm

1: 154mm

2: 138mm

1: 154mm

2: 138mm

 measured from underside of rail
Total System weight in kg: 42kg 48kg

1: 48kg

2: 53kg

56kg



Further requirements:

  • First beam must be an angle beam
  • The last beam can be an angle beam or a box beam
  • Special pallets, not shown here inquire separately
  • The recommended slope of the system is 3%
  • The maximum pallet weight is 1300kg as standard

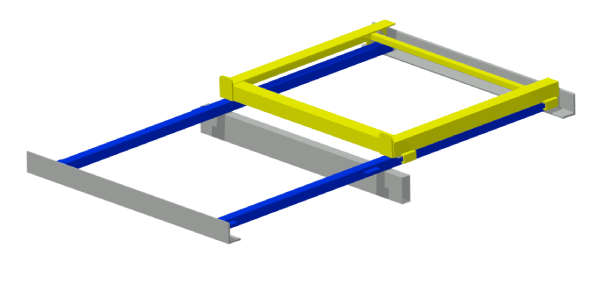

System Picture

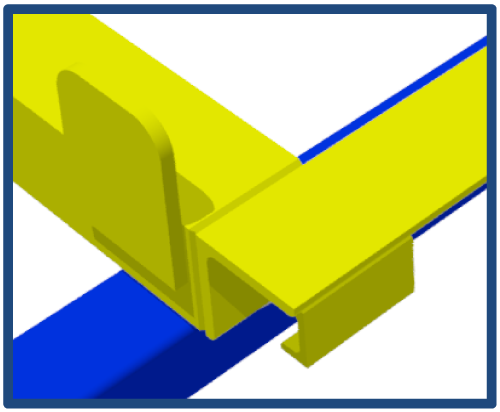

Lift Out Protection

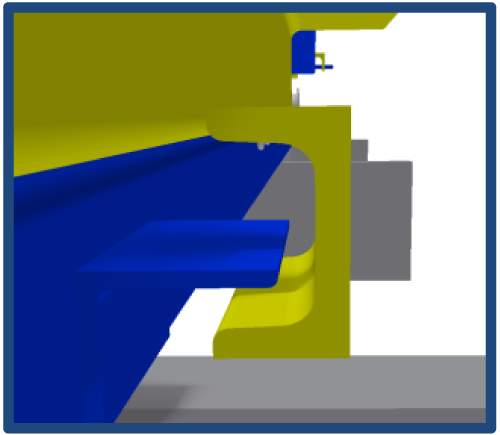

Multi Purpose Plate









Cart Push Back - 3 pallets deep

Criteria

 Euro Pallet DIN / EN 15146 1200mm x 800mm Industrial Pallet (EUR3) DIN 15146 1200mm x 1000mm UK Chep Pallet B1210A 1200 x 1000mm US Pallet GMA 1020mm x 1220mm Comment
Direction of transport: (in depth) 800mm 1000mm

1: 1000mm

2: 1200mm

 1220mm
System depth min. in mm.: (overall depth of rack) 2550mm 3150mm

1: 3150mm

2: 3750mm

 3810mm Rails = depth of pallet x 3 + 150mm
System width max. in mm.: 1180mm 1180mm

1: 1180mm

2: 980mm

 1200mm Widest trolley = Pallet width - 20mm

System height in mm.:

1: end stop

2: first cart

1: 164mm

2: 151mm

1: 164mm

2: 151mm

1: 164mm

2: 151mm

1: 164mm

2: 151mm

 measured from underside of rail
Total System weight in kg: 76kg 67kg

1: 87kg

2: 96kg

100kg



Further requirements:

  • First beam must be an angle beam
  • The last beam can be an angle beam or a box beam
  • Special pallets, not shown here inquire separately
  • The recommended slope of the system is 3%
  • The maximum pallet weight is 1300kg as standard

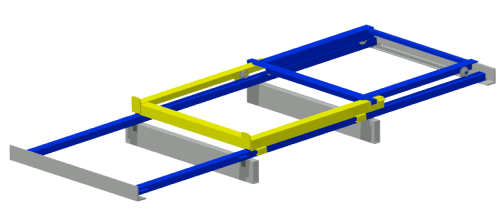

System Picture


Lift Out Protection


Multi Purpose Plate


Anti Spread Prevention









Cart Push Back - 4 pallets deep

Criteria

 Euro Pallet DIN / EN 15146 1200mm x 800mm Industrial Pallet (EUR3) DIN 15146 1200mm x 1000mm UK Chep Pallet B1210A 1200 x 1000mm US Pallet GMA 1020mm x 1220mm Comment
Direction of transport: (in depth) 800mm 1000mm

1: 1000mm

2: 1200mm

 1220mm
System depth min. in mm.: (overall depth of rack) 3400mm 4200mm

1: 4200mm

2: 5000mm

 5080mm Rails = depth of pallet x 4 + 200mm
System width max. in mm.: 1307mm 1307mm

1: 1307mm

2: 1107mm

 1327mm Widest trolley = Pallet width + 107mm

System height in mm.:

1: end stop

2: first cart

1: 189mm

2: 176mm

1: 189mm

2: 176mm

1: 189mm

2: 176mm

1: 189mm

2: 176mm

 measured from underside of rail
Total System weight in kg: 118kg 135kg

1: 87kg

2: 96kg

100kg



Further requirements:

  • First beam must be an angle beam
  • The last beam can be an angle beam or a box beam
  • Special pallets, not shown here inquire separately
  • The recommended slope of the system is 3%
  • The maximum pallet weight is 1300kg as standard

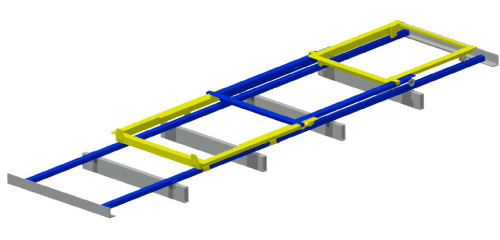

System Picture


Lift Out Protection


Multi Purpose Plate


Anti Spread Prevention
